Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|

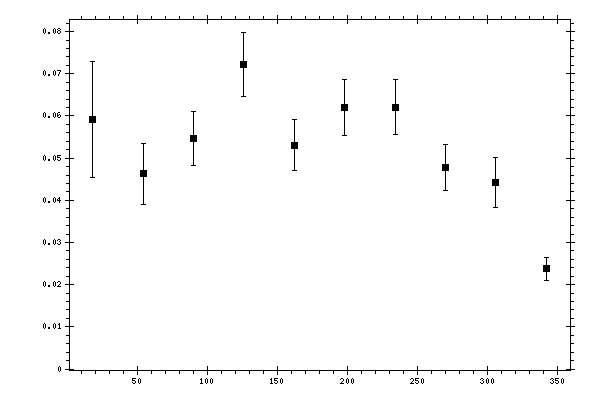

Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0592094 | 0.0137172 | 0.01167184 |
| 54 | 0.0462808 | 0.00717821 | 0.00589789 |
| 90 | 0.0547392 | 0.00637716 | 0.00682754 |
| 126 | 0.0722276 | 0.00759437 | 0.00629447 |
| 162 | 0.053032 | 0.00604232 | 0.00577545 |
| 198 | 0.0620853 | 0.00666568 | 0.00591958 |
| 234 | 0.0620393 | 0.00649974 | 0.00540907 |
| 270 | 0.0477418 | 0.00550137 | 0.00482379 |
| 306 | 0.0441872 | 0.00600304 | 0.00514132 |
| 342 | 0.02379 | 0.0027323 | 0.00704927 |
