Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

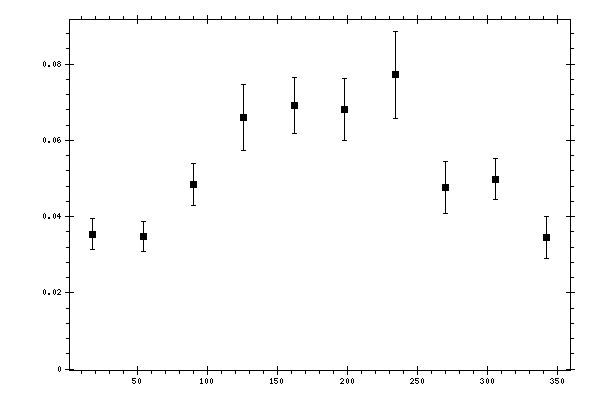

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0354138 | 0.00410661 | 0.00436384 |
| 54 | 0.034769 | 0.00394022 | 0.00471928 |
| 90 | 0.0484491 | 0.00547625 | 0.00572764 |
| 126 | 0.0659164 | 0.00870522 | 0.00734302 |
| 162 | 0.0691858 | 0.00740349 | 0.0083177 |
| 198 | 0.0681235 | 0.00813001 | 0.00742195 |
| 234 | 0.0771807 | 0.0114186 | 0.00753861 |
| 270 | 0.0476421 | 0.00684498 | 0.00645803 |
| 306 | 0.0498277 | 0.00536474 | 0.00566468 |
| 342 | 0.0345924 | 0.00553824 | 0.00429044 |
