Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|

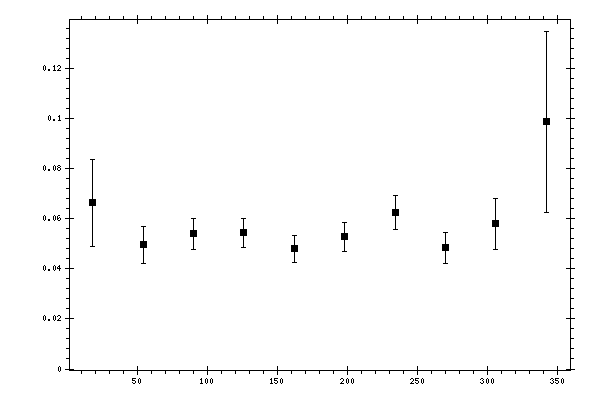

Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0664266 | 0.0175168 | 0.01918558 |
| 54 | 0.0495874 | 0.00739671 | 0.00590617 |
| 90 | 0.0540108 | 0.00624819 | 0.00517442 |
| 126 | 0.0545107 | 0.00585631 | 0.00511857 |
| 162 | 0.0480572 | 0.00535521 | 0.00456807 |
| 198 | 0.0528567 | 0.00568008 | 0.00503429 |
| 234 | 0.0626085 | 0.00672086 | 0.00616829 |
| 270 | 0.04844 | 0.00629513 | 0.00589758 |
| 306 | 0.0581063 | 0.0101895 | 0.00621936 |
| 342 | 0.0988352 | 0.0360774 | 0.01810285 |
