Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

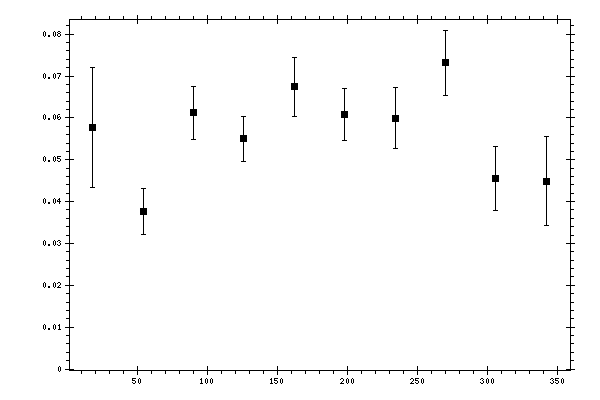

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0576479 | 0.014306 | 0.01435803 |
| 54 | 0.0375723 | 0.00552413 | 0.00555123 |
| 90 | 0.0612482 | 0.00636014 | 0.00600141 |
| 126 | 0.0549924 | 0.00539887 | 0.00509545 |
| 162 | 0.0674467 | 0.00703469 | 0.00564753 |
| 198 | 0.0607794 | 0.00625068 | 0.00510869 |
| 234 | 0.0599336 | 0.00735514 | 0.00582697 |
| 270 | 0.0731934 | 0.00776691 | 0.00609106 |
| 306 | 0.0455182 | 0.00755793 | 0.00505817 |
| 342 | 0.0449256 | 0.0106905 | 0.01178264 |
