Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

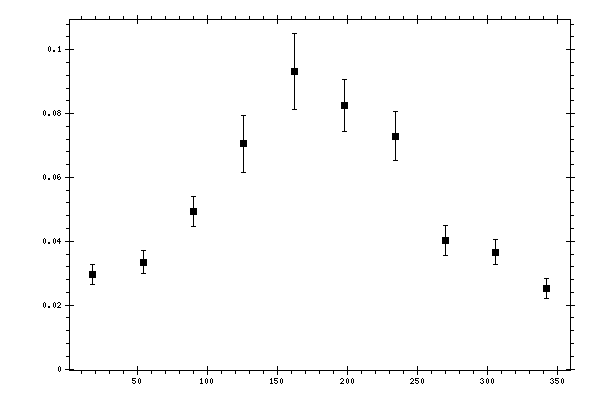

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0296196 | 0.00321333 | 0.00386618 |
| 54 | 0.0334749 | 0.00361623 | 0.00383695 |
| 90 | 0.0494101 | 0.00466759 | 0.00520823 |
| 126 | 0.0705015 | 0.00897767 | 0.00753005 |
| 162 | 0.0931653 | 0.0119788 | 0.00869013 |
| 198 | 0.0825103 | 0.00823627 | 0.00798955 |
| 234 | 0.0729395 | 0.00777724 | 0.00697449 |
| 270 | 0.0403158 | 0.00468051 | 0.00480685 |
| 306 | 0.036585 | 0.00395495 | 0.00412642 |
| 342 | 0.025138 | 0.00315572 | 0.00372926 |
