Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

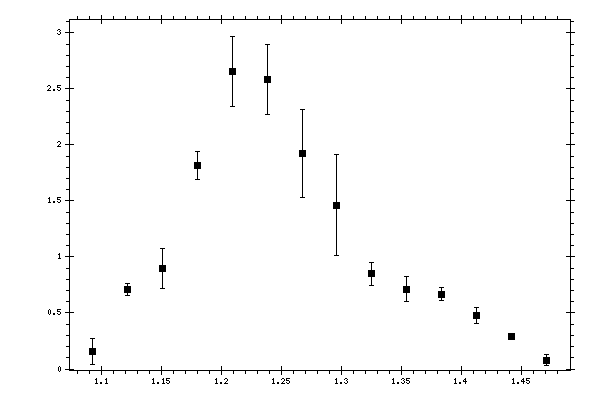

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.0924 | 0.154314 | 0.118417 | 0.04004863 |
| 1.12151 | 0.707209 | 0.0553148 | 0.09171433 |
| 1.15063 | 0.899312 | 0.177075 | 0.11218637 |
| 1.17974 | 1.81385 | 0.124684 | 0.18233741 |
| 1.20885 | 2.65678 | 0.311934 | 0.32068068 |
| 1.23797 | 2.5849 | 0.316242 | 0.31248357 |
| 1.26708 | 1.9202 | 0.392376 | 0.41236628 |
| 1.29619 | 1.462 | 0.449678 | 0.31472067 |
| 1.32531 | 0.848237 | 0.101734 | 0.07549526 |
| 1.35442 | 0.713919 | 0.110892 | 0.0641265 |
| 1.38353 | 0.667511 | 0.0592099 | 0.06161495 |
| 1.41265 | 0.47908 | 0.0698908 | 0.04486868 |
| 1.44176 | 0.288776 | 0.0248829 | 0.03168459 |
| 1.47087 | 0.0779358 | 0.0478975 | 0.01060451 |
