Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

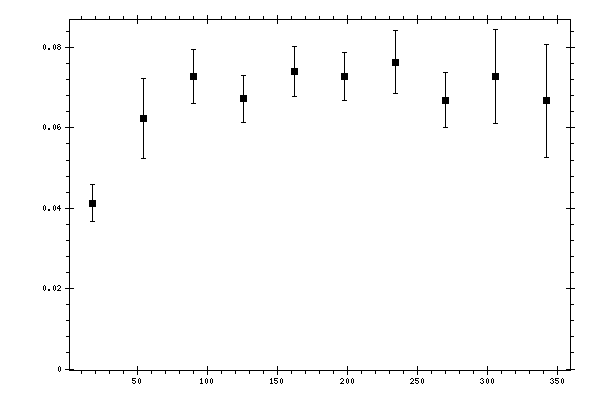

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0412808 | 0.00467002 | 0.00815528 |
| 54 | 0.0623449 | 0.00991431 | 0.00686686 |
| 90 | 0.0727523 | 0.00678451 | 0.00653781 |
| 126 | 0.0672373 | 0.00592629 | 0.00711734 |
| 162 | 0.0740529 | 0.00620502 | 0.00730242 |
| 198 | 0.0728823 | 0.00600431 | 0.00644366 |
| 234 | 0.0763823 | 0.0079313 | 0.00812098 |
| 270 | 0.066904 | 0.00678183 | 0.00598812 |
| 306 | 0.0727708 | 0.0116971 | 0.01083132 |
| 342 | 0.0667116 | 0.0139543 | 0.01163032 |
