Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

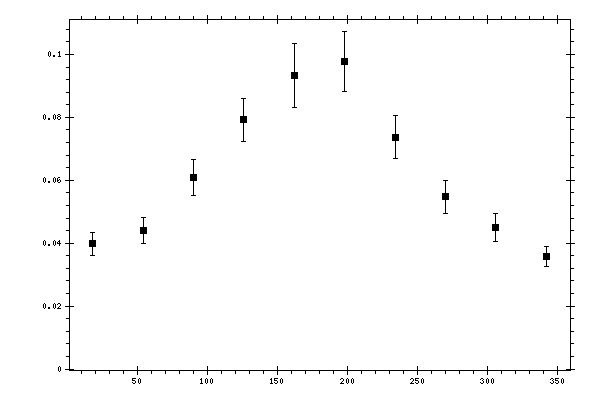

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0397912 | 0.00365441 | 0.00477294 |
| 54 | 0.0441605 | 0.00414062 | 0.00494117 |
| 90 | 0.0608514 | 0.00564359 | 0.00643198 |
| 126 | 0.0792202 | 0.00677531 | 0.00801283 |
| 162 | 0.0931542 | 0.0101684 | 0.016446 |
| 198 | 0.0976722 | 0.00954119 | 0.01062041 |
| 234 | 0.073754 | 0.00677529 | 0.00841225 |
| 270 | 0.054699 | 0.00525537 | 0.00565947 |
| 306 | 0.0450225 | 0.00444115 | 0.00524064 |
| 342 | 0.0357897 | 0.00330865 | 0.00451375 |
