Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

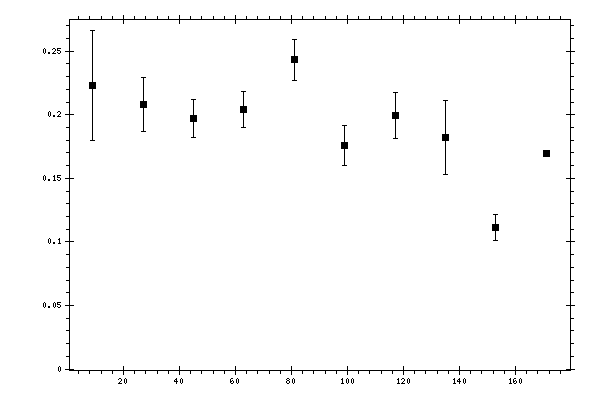

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.222951 | 0.043302 | 0.04018011 |
| 27 | 0.20804 | 0.0208752 | 0.01955914 |
| 45 | 0.197142 | 0.0151415 | 0.01692926 |
| 63 | 0.204048 | 0.0141019 | 0.01944486 |
| 81 | 0.24318 | 0.016352 | 0.02192368 |
| 99 | 0.175807 | 0.0153895 | 0.01505034 |
| 117 | 0.199349 | 0.0182731 | 0.01927505 |
| 135 | 0.182226 | 0.0288732 | 0.03357515 |
| 153 | 0.111332 | 0.00998355 | 0.07925379 |
| 171 | 0.169561 | 0.00015264 | 0.09184684 |
