Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|

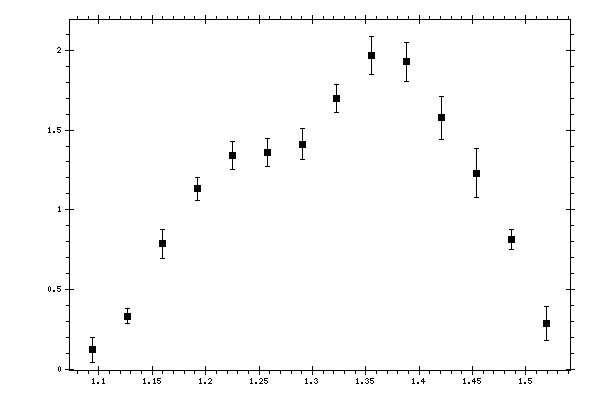

Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09418 | 0.120645 | 0.0785556 | 0.01855856 |
| 1.12687 | 0.331496 | 0.0473907 | 0.04803246 |
| 1.15955 | 0.785855 | 0.0889272 | 0.06162165 |
| 1.19224 | 1.13145 | 0.0741121 | 0.08697151 |
| 1.22492 | 1.34171 | 0.0885505 | 0.11212869 |
| 1.25761 | 1.3623 | 0.0878787 | 0.11376243 |
| 1.29029 | 1.41272 | 0.0972912 | 0.13298176 |
| 1.32298 | 1.69859 | 0.0887273 | 0.15479865 |
| 1.35566 | 1.96776 | 0.121496 | 0.17690783 |
| 1.38835 | 1.92975 | 0.122686 | 0.17438386 |
| 1.42103 | 1.57665 | 0.136969 | 0.19402568 |
| 1.45372 | 1.22996 | 0.155076 | 0.16428622 |
| 1.4864 | 0.81361 | 0.0636724 | 0.11929771 |
| 1.51909 | 0.285449 | 0.107497 | 0.08145906 |
