Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcbn/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,π−), mcbn/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.

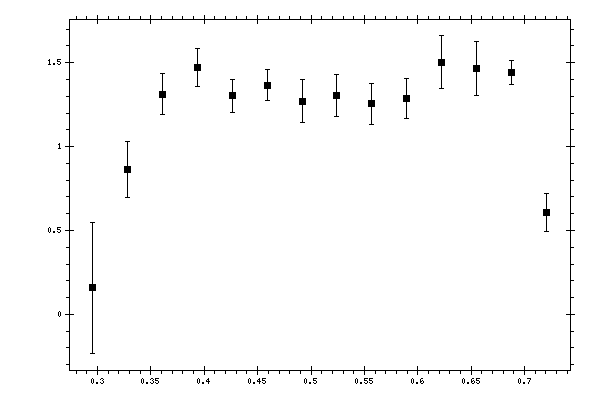

Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 0.295482 | 0.157395 | 0.388576 | 0.03436948 |
| 0.328167 | 0.861984 | 0.166043 | 0.12840067 |
| 0.360852 | 1.31293 | 0.120782 | 0.12716485 |
| 0.393537 | 1.47104 | 0.114106 | 0.13926568 |
| 0.426222 | 1.30237 | 0.0969987 | 0.12561594 |
| 0.458907 | 1.36639 | 0.094699 | 0.1302983 |
| 0.491592 | 1.27139 | 0.128384 | 0.12506574 |
| 0.524276 | 1.30513 | 0.126713 | 0.12765877 |
| 0.556961 | 1.25458 | 0.121976 | 0.12043386 |
| 0.589646 | 1.28679 | 0.120439 | 0.12310266 |
| 0.622331 | 1.50297 | 0.156785 | 0.13037347 |
| 0.655016 | 1.46481 | 0.158814 | 0.12723519 |
| 0.687701 | 1.4432 | 0.0719586 | 0.12343558 |
| 0.720386 | 0.606298 | 0.111021 | 0.05263691 |
