Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|

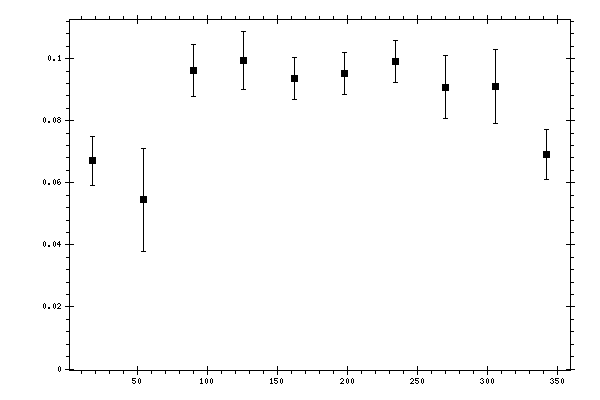

Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0670525 | 0.00784881 | 0.01193966 |
| 54 | 0.0544855 | 0.0166488 | 0.00701066 |
| 90 | 0.0962614 | 0.00844045 | 0.00753441 |
| 126 | 0.0994843 | 0.00942711 | 0.00877297 |
| 162 | 0.0935838 | 0.0067028 | 0.00813527 |
| 198 | 0.0951271 | 0.00678485 | 0.00736463 |
| 234 | 0.0991738 | 0.00673306 | 0.00758518 |
| 270 | 0.090866 | 0.0101387 | 0.00798313 |
| 306 | 0.091013 | 0.0118281 | 0.01224627 |
| 342 | 0.0691085 | 0.00802799 | 0.01306042 |
