Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

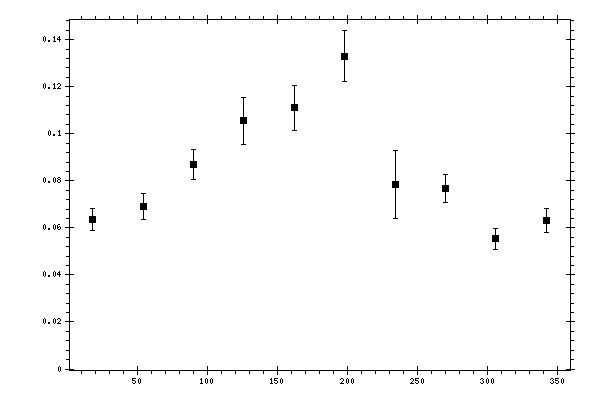

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0634966 | 0.00476077 | 0.00693077 |
| 54 | 0.0690217 | 0.0054383 | 0.0089711 |
| 90 | 0.0868425 | 0.00637562 | 0.00804631 |
| 126 | 0.10544 | 0.00982179 | 0.00957984 |
| 162 | 0.111051 | 0.00945483 | 0.01164081 |
| 198 | 0.133011 | 0.010715 | 0.01223458 |
| 234 | 0.0785342 | 0.0145235 | 0.00922499 |
| 270 | 0.0768845 | 0.00593321 | 0.00731097 |
| 306 | 0.0552942 | 0.00439654 | 0.00629502 |
| 342 | 0.0631199 | 0.00497066 | 0.0065979 |
