Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

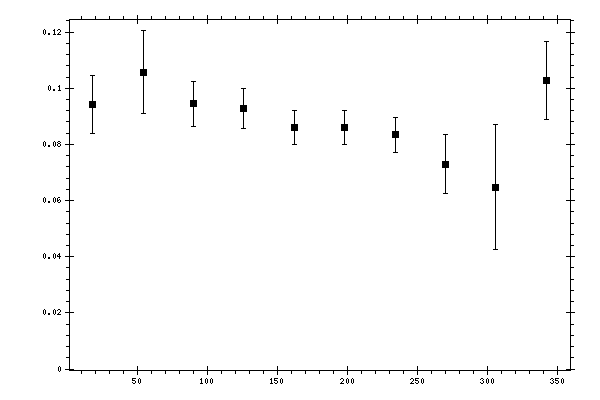

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0941263 | 0.0103703 | 0.01405541 |
| 54 | 0.105762 | 0.0146682 | 0.01010031 |
| 90 | 0.0945319 | 0.00805792 | 0.00739143 |
| 126 | 0.092751 | 0.00718113 | 0.007915 |
| 162 | 0.0861811 | 0.00605041 | 0.00702734 |
| 198 | 0.0860753 | 0.0060339 | 0.00662184 |
| 234 | 0.0834282 | 0.00629962 | 0.00805121 |
| 270 | 0.072984 | 0.0103943 | 0.00832726 |
| 306 | 0.0647905 | 0.0223592 | 0.00786871 |
| 342 | 0.102882 | 0.01396 | 0.0151211 |
