Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|

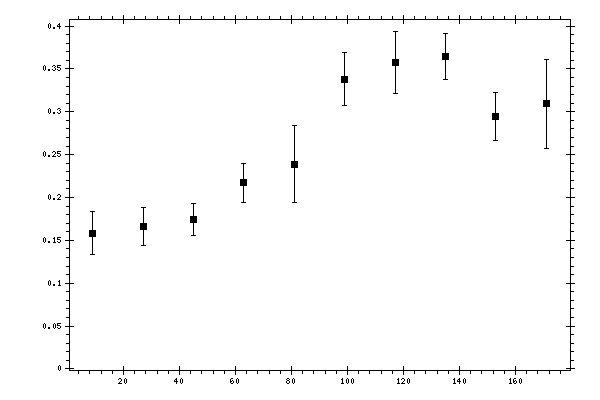

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.15812 | 0.0250231 | 0.03323191 |
| 27 | 0.165784 | 0.0222416 | 0.02970216 |
| 45 | 0.17425 | 0.0188072 | 0.02371482 |
| 63 | 0.217401 | 0.0227916 | 0.02733103 |
| 81 | 0.238918 | 0.0450852 | 0.0231078 |
| 99 | 0.338027 | 0.0308923 | 0.03007583 |
| 117 | 0.357818 | 0.036208 | 0.04067799 |
| 135 | 0.364527 | 0.0265826 | 0.03023669 |
| 153 | 0.294531 | 0.0278502 | 0.03587608 |
| 171 | 0.309107 | 0.0521213 | 0.03533678 |
