Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

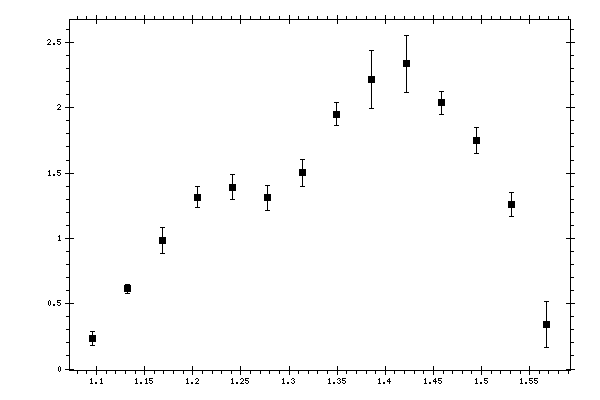

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09597 | 0.233013 | 0.0568239 | 0.0217533 |
| 1.13223 | 0.612511 | 0.0350481 | 0.05419919 |
| 1.16848 | 0.984706 | 0.0968057 | 0.08641927 |
| 1.20474 | 1.31659 | 0.08372 | 0.11429168 |
| 1.241 | 1.39279 | 0.094277 | 0.14107949 |
| 1.27725 | 1.30949 | 0.0972292 | 0.13287998 |
| 1.31351 | 1.50282 | 0.102027 | 0.13509788 |
| 1.34976 | 1.95099 | 0.0895454 | 0.17164934 |
| 1.38602 | 2.21492 | 0.223261 | 0.21019883 |
| 1.42228 | 2.33506 | 0.217441 | 0.21934555 |
| 1.45853 | 2.03699 | 0.0912072 | 0.19978012 |
| 1.49479 | 1.74707 | 0.0984845 | 0.18101052 |
| 1.53105 | 1.2585 | 0.0919015 | 0.16103219 |
| 1.5673 | 0.341116 | 0.176522 | 0.0977917 |
