Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|

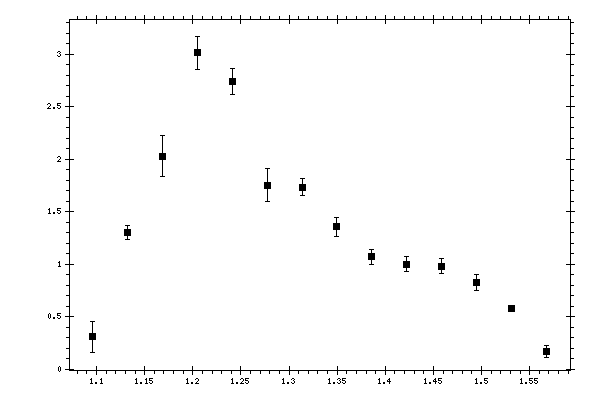

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09597 | 0.305207 | 0.145343 | 0.08476275 |
| 1.13223 | 1.30103 | 0.0703959 | 0.18243961 |
| 1.16848 | 2.02822 | 0.192838 | 0.21196076 |
| 1.20474 | 3.01264 | 0.158226 | 0.28008021 |
| 1.241 | 2.73786 | 0.125292 | 0.25415005 |
| 1.27725 | 1.75173 | 0.156637 | 0.16980071 |
| 1.31351 | 1.73174 | 0.0807588 | 0.13652876 |
| 1.34976 | 1.35292 | 0.0913684 | 0.10731255 |
| 1.38602 | 1.0675 | 0.0689542 | 0.08716814 |
| 1.42228 | 0.9992 | 0.0712717 | 0.08166346 |
| 1.45853 | 0.979912 | 0.0689564 | 0.09214948 |
| 1.49479 | 0.820369 | 0.0753639 | 0.07728763 |
| 1.53105 | 0.577132 | 0.0300678 | 0.05129354 |
| 1.5673 | 0.162891 | 0.0565966 | 0.01502098 |
