Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

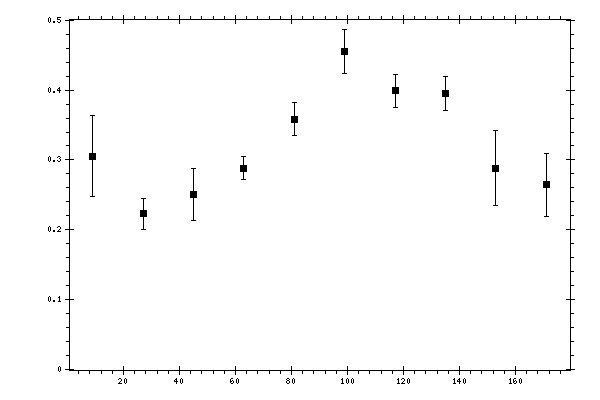

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.305173 | 0.057821 | 0.05682097 |
| 27 | 0.222713 | 0.0219942 | 0.03126144 |
| 45 | 0.250274 | 0.0369922 | 0.028893 |
| 63 | 0.288315 | 0.0164713 | 0.03320525 |
| 81 | 0.358641 | 0.0237506 | 0.03656564 |
| 99 | 0.455364 | 0.0310713 | 0.03659318 |
| 117 | 0.399541 | 0.0236489 | 0.03338139 |
| 135 | 0.395738 | 0.0244059 | 0.03206751 |
| 153 | 0.288227 | 0.0532544 | 0.03780997 |
| 171 | 0.264274 | 0.0451108 | 0.0339018 |
