Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|

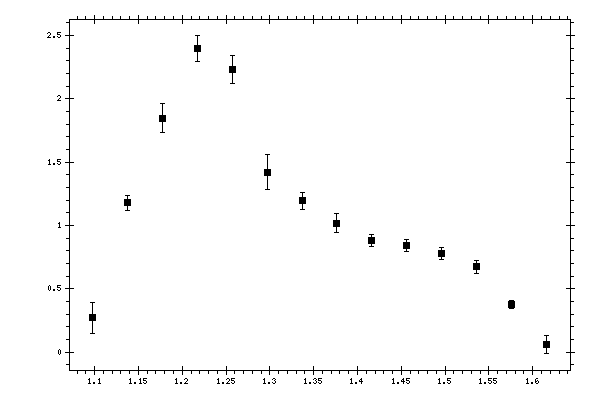

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09776 | 0.271696 | 0.120792 | 0.08551935 |
| 1.13758 | 1.17945 | 0.0579751 | 0.12843173 |
| 1.17741 | 1.84773 | 0.113893 | 0.20234863 |
| 1.21724 | 2.39805 | 0.0999739 | 0.24068633 |
| 1.25707 | 2.23457 | 0.110693 | 0.23542907 |
| 1.29689 | 1.42295 | 0.138715 | 0.154597 |
| 1.33672 | 1.19542 | 0.0693537 | 0.09910505 |
| 1.37655 | 1.0202 | 0.0750734 | 0.08484389 |
| 1.41638 | 0.883425 | 0.0479025 | 0.074657 |
| 1.45621 | 0.842082 | 0.0490643 | 0.07119162 |
| 1.49603 | 0.777182 | 0.0467934 | 0.07424706 |
| 1.53586 | 0.674645 | 0.0502236 | 0.06453488 |
| 1.57569 | 0.376849 | 0.0291018 | 0.0397897 |
| 1.61552 | 0.0640895 | 0.0705684 | 0.00742658 |
