Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

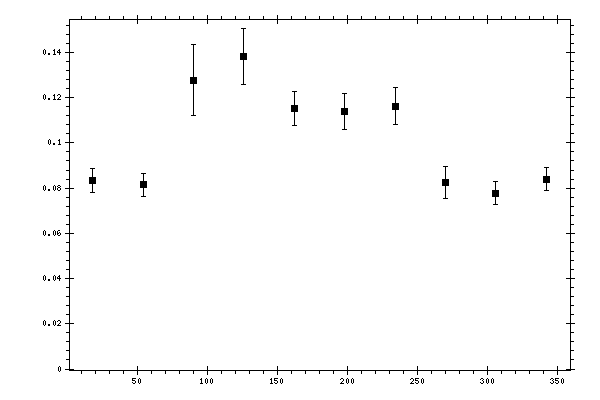

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0832118 | 0.00534639 | 0.00846917 |
| 54 | 0.081409 | 0.00512862 | 0.00862386 |
| 90 | 0.127791 | 0.01561 | 0.01569666 |
| 126 | 0.138061 | 0.0123892 | 0.01383153 |
| 162 | 0.115304 | 0.0076204 | 0.01103982 |
| 198 | 0.113875 | 0.00799045 | 0.01090297 |
| 234 | 0.116284 | 0.00827103 | 0.01008497 |
| 270 | 0.0823518 | 0.00712408 | 0.0086139 |
| 306 | 0.0777198 | 0.00503676 | 0.00866884 |
| 342 | 0.0840183 | 0.00527901 | 0.00852333 |
