Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|

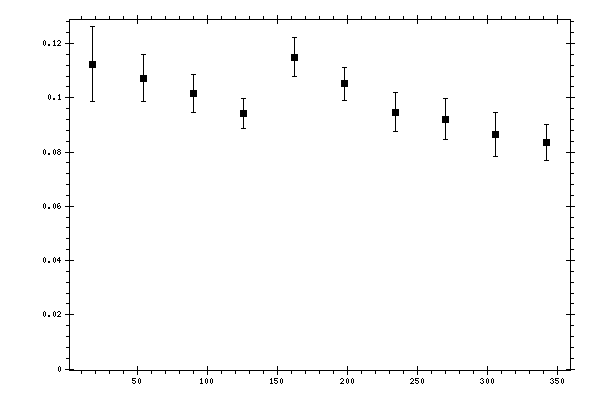

Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.112365 | 0.0138647 | 0.01799942 |
| 54 | 0.107142 | 0.00867791 | 0.01230398 |
| 90 | 0.101507 | 0.00699088 | 0.00798302 |
| 126 | 0.0941982 | 0.00560016 | 0.00762759 |
| 162 | 0.114992 | 0.00710361 | 0.01029812 |
| 198 | 0.105184 | 0.00605824 | 0.00967353 |
| 234 | 0.0947658 | 0.00705348 | 0.00772231 |
| 270 | 0.0921425 | 0.00767069 | 0.007666 |
| 306 | 0.0864449 | 0.00822185 | 0.00953345 |
| 342 | 0.0834117 | 0.00660333 | 0.01638432 |
