Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcbn/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|

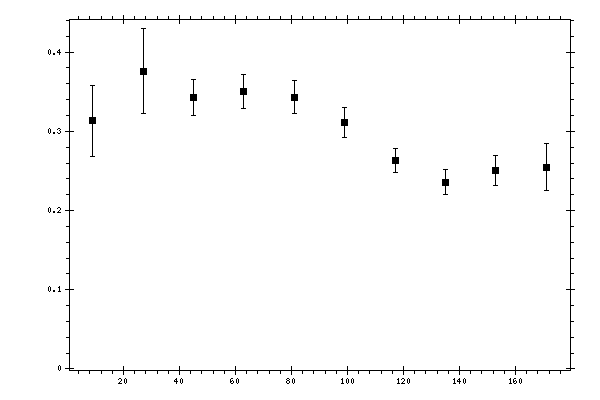

Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcbn/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.313093 | 0.0451528 | 0.05075682 |
| 27 | 0.376113 | 0.0540072 | 0.04207339 |
| 45 | 0.343135 | 0.022786 | 0.03159762 |
| 63 | 0.350432 | 0.0212937 | 0.03085401 |
| 81 | 0.343288 | 0.0205544 | 0.02997315 |
| 99 | 0.311494 | 0.0191026 | 0.02843823 |
| 117 | 0.262661 | 0.0151668 | 0.02478148 |
| 135 | 0.235956 | 0.0153423 | 0.0243604 |
| 153 | 0.2502 | 0.0188902 | 0.03025869 |
| 171 | 0.254871 | 0.0297077 | 0.02758503 |
