Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

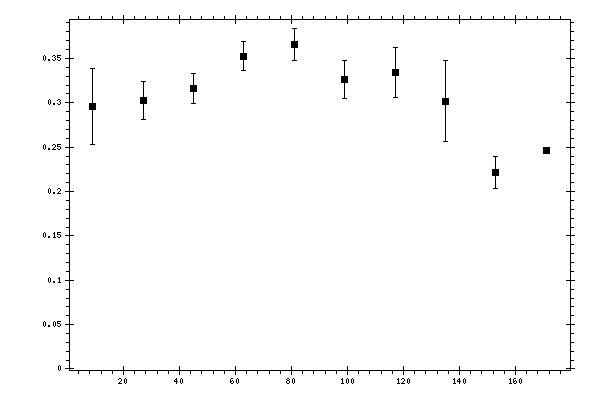

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.296089 | 0.042723 | 0.02709564 |
| 27 | 0.303107 | 0.0214112 | 0.0250246 |
| 45 | 0.316541 | 0.0168692 | 0.02797027 |
| 63 | 0.352499 | 0.0166269 | 0.02833515 |
| 81 | 0.365738 | 0.0185117 | 0.02970715 |
| 99 | 0.325865 | 0.0213231 | 0.02858776 |
| 117 | 0.333726 | 0.0281322 | 0.02738188 |
| 135 | 0.301797 | 0.045668 | 0.05176734 |
| 153 | 0.221115 | 0.0178814 | 0.08062286 |
| 171 | 0.246299 | 0.00023111 | 0.12752536 |
