Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

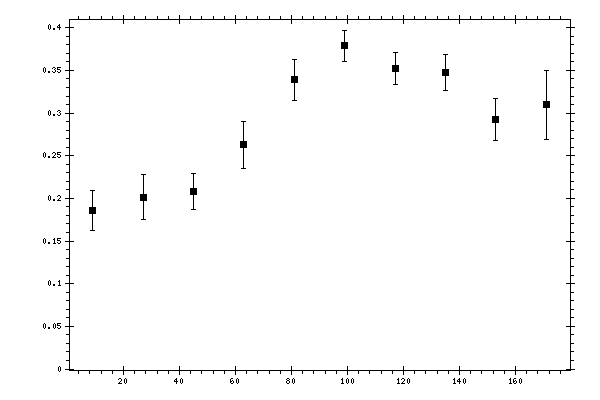

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.185925 | 0.0234199 | 0.03461205 |
| 27 | 0.201598 | 0.0265363 | 0.03411861 |
| 45 | 0.207623 | 0.0210557 | 0.02634083 |
| 63 | 0.262612 | 0.0271913 | 0.03929779 |
| 81 | 0.338887 | 0.0238139 | 0.03156201 |
| 99 | 0.378874 | 0.0185382 | 0.03765249 |
| 117 | 0.352 | 0.018964 | 0.02926981 |
| 135 | 0.347334 | 0.0212622 | 0.02986435 |
| 153 | 0.292384 | 0.0242073 | 0.02565149 |
| 171 | 0.309842 | 0.0406612 | 0.03276112 |
