Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|

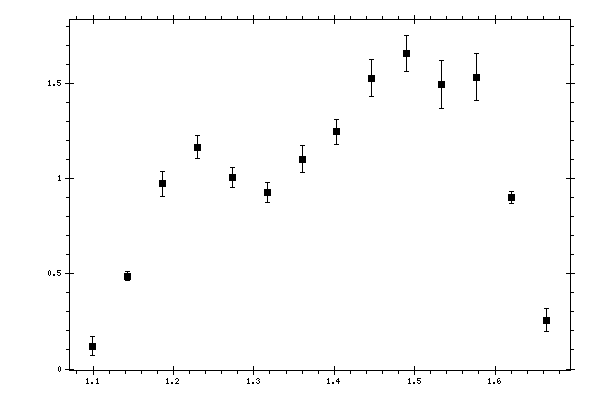

Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09954 | 0.120593 | 0.0478095 | 0.01166918 |
| 1.14294 | 0.488772 | 0.0237478 | 0.0445751 |
| 1.18634 | 0.975008 | 0.0654346 | 0.07982179 |
| 1.22974 | 1.16685 | 0.0598142 | 0.09523913 |
| 1.27314 | 1.00557 | 0.0524688 | 0.09004621 |
| 1.31654 | 0.928668 | 0.054598 | 0.08336444 |
| 1.35994 | 1.10366 | 0.0716188 | 0.08858967 |
| 1.40334 | 1.24655 | 0.0673892 | 0.09965197 |
| 1.44673 | 1.52836 | 0.098083 | 0.13203213 |
| 1.49013 | 1.657 | 0.0941988 | 0.14192642 |
| 1.53353 | 1.49624 | 0.124933 | 0.15354403 |
| 1.57693 | 1.53349 | 0.123406 | 0.156405 |
| 1.62033 | 0.900555 | 0.0326545 | 0.11662237 |
| 1.66373 | 0.257223 | 0.0611004 | 0.08001167 |
