Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcbn/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|

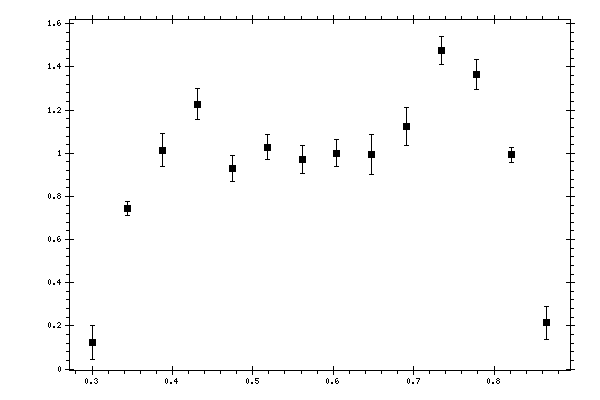

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcbn/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 0.30084 | 0.124299 | 0.0783233 | 0.02362108 |
| 0.344239 | 0.744413 | 0.032005 | 0.07330467 |
| 0.387638 | 1.01495 | 0.0773253 | 0.1084521 |
| 0.431037 | 1.228 | 0.0702982 | 0.12599135 |
| 0.474436 | 0.929449 | 0.0594867 | 0.11203935 |
| 0.517835 | 1.02894 | 0.0565376 | 0.12093635 |
| 0.561234 | 0.970736 | 0.0637071 | 0.10408834 |
| 0.604634 | 1.00046 | 0.0627535 | 0.10677195 |
| 0.648033 | 0.995024 | 0.0933564 | 0.09923594 |
| 0.691432 | 1.12488 | 0.0878029 | 0.11140847 |
| 0.734831 | 1.47614 | 0.0668612 | 0.12379671 |
| 0.77823 | 1.36493 | 0.0695318 | 0.11459807 |
| 0.821629 | 0.992209 | 0.0351676 | 0.09065106 |
| 0.865028 | 0.213888 | 0.0757445 | 0.02050195 |
