Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

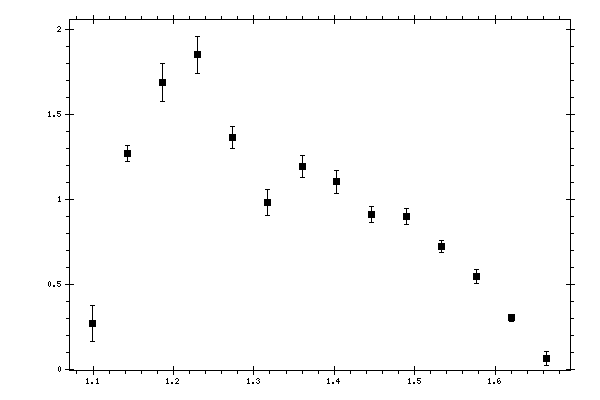

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09954 | 0.267697 | 0.105868 | 0.08293787 |
| 1.14294 | 1.26711 | 0.048661 | 0.13464597 |
| 1.18634 | 1.6843 | 0.112842 | 0.19072374 |
| 1.22974 | 1.8485 | 0.107714 | 0.20490297 |
| 1.27314 | 1.3628 | 0.065361 | 0.11928099 |
| 1.31654 | 0.977526 | 0.0771739 | 0.08775925 |
| 1.35994 | 1.18968 | 0.0642143 | 0.10047236 |
| 1.40334 | 1.10032 | 0.0667709 | 0.09298384 |
| 1.44673 | 0.909719 | 0.0462224 | 0.07350724 |
| 1.49013 | 0.897554 | 0.0465346 | 0.07252859 |
| 1.53353 | 0.721284 | 0.0360308 | 0.06053574 |
| 1.57693 | 0.545632 | 0.0414264 | 0.04588965 |
| 1.62033 | 0.300966 | 0.0188588 | 0.02804328 |
| 1.66373 | 0.0627023 | 0.0413172 | 0.00630635 |
