Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

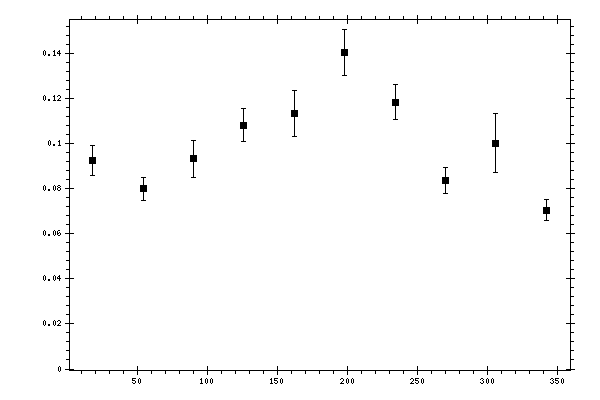

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0924137 | 0.00662414 | 0.00849469 |
| 54 | 0.0798844 | 0.00508145 | 0.00761845 |
| 90 | 0.093271 | 0.00816978 | 0.00827068 |
| 126 | 0.108047 | 0.00725175 | 0.00942193 |
| 162 | 0.113356 | 0.0101814 | 0.00998041 |
| 198 | 0.140215 | 0.0102466 | 0.01345172 |
| 234 | 0.118285 | 0.00789132 | 0.01257489 |
| 270 | 0.0833742 | 0.00577998 | 0.00775779 |
| 306 | 0.0999931 | 0.0130551 | 0.01171767 |
| 342 | 0.0703903 | 0.00472238 | 0.00780445 |
