Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

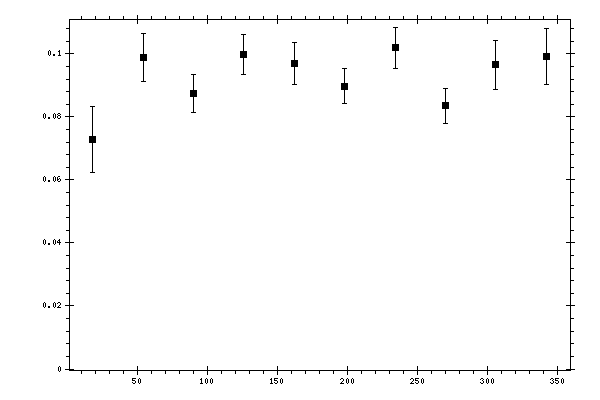

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0728234 | 0.0105709 | 0.01182129 |
| 54 | 0.0988371 | 0.00755981 | 0.00979447 |
| 90 | 0.087398 | 0.00604438 | 0.00743941 |
| 126 | 0.0998088 | 0.00643327 | 0.00811076 |
| 162 | 0.0969399 | 0.0066599 | 0.00780775 |
| 198 | 0.0897551 | 0.00545042 | 0.00792524 |
| 234 | 0.101928 | 0.00651432 | 0.00854831 |
| 270 | 0.0835212 | 0.00557405 | 0.00683717 |
| 306 | 0.0965373 | 0.00780254 | 0.01714973 |
| 342 | 0.0991374 | 0.0087805 | 0.01257162 |
