Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|

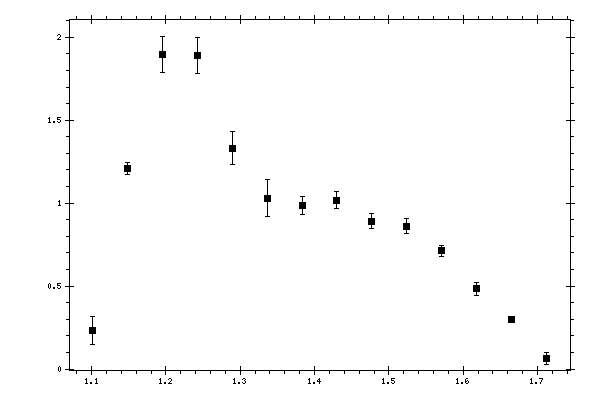

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10133 | 0.23054 | 0.0833615 | 0.07155215 |
| 1.1483 | 1.2101 | 0.0363855 | 0.19505129 |
| 1.19527 | 1.89723 | 0.108225 | 0.28356138 |
| 1.24224 | 1.88989 | 0.108435 | 0.28250909 |
| 1.28921 | 1.3321 | 0.100272 | 0.11683207 |
| 1.33618 | 1.03082 | 0.113987 | 0.0908714 |
| 1.38315 | 0.986101 | 0.0516062 | 0.07679366 |
| 1.43012 | 1.01875 | 0.0507726 | 0.07932535 |
| 1.47709 | 0.891898 | 0.0457372 | 0.08050342 |
| 1.52406 | 0.862169 | 0.046519 | 0.07782608 |
| 1.57103 | 0.712602 | 0.0313968 | 0.05862026 |
| 1.618 | 0.48357 | 0.0381136 | 0.03986046 |
| 1.66497 | 0.298212 | 0.0167822 | 0.02903443 |
| 1.71194 | 0.062209 | 0.0367439 | 0.00631162 |
