Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

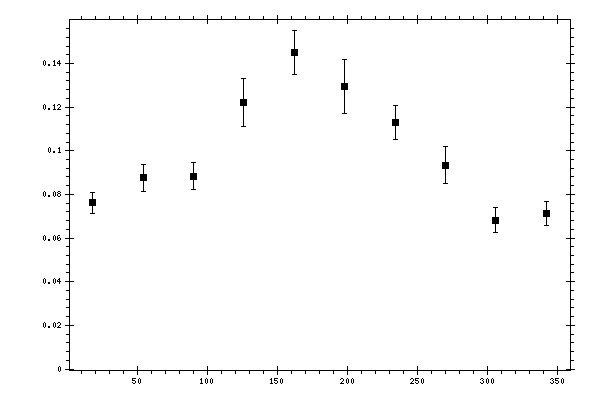

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.076161 | 0.00492569 | 0.0075762 |
| 54 | 0.0875388 | 0.00617335 | 0.00799198 |
| 90 | 0.0883842 | 0.0060378 | 0.00907542 |
| 126 | 0.121987 | 0.0110038 | 0.00983121 |
| 162 | 0.145082 | 0.0102167 | 0.01178017 |
| 198 | 0.129403 | 0.0122918 | 0.01232203 |
| 234 | 0.112999 | 0.00792724 | 0.00892655 |
| 270 | 0.0933563 | 0.00838976 | 0.00924001 |
| 306 | 0.0681855 | 0.00563096 | 0.00766908 |
| 342 | 0.0713324 | 0.0053846 | 0.00762927 |
