Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

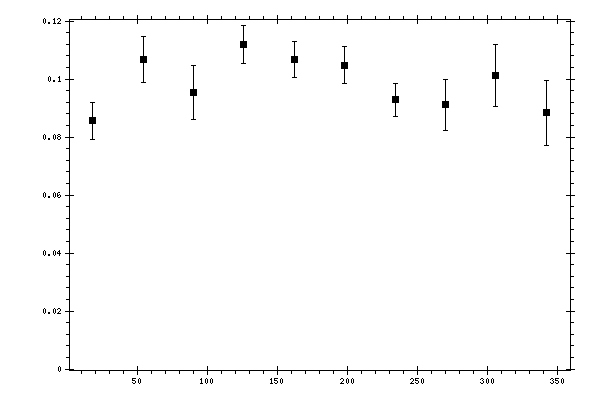

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0855454 | 0.00646123 | 0.03586798 |
| 54 | 0.106707 | 0.00798019 | 0.00862418 |
| 90 | 0.0955098 | 0.00930561 | 0.00950361 |
| 126 | 0.111824 | 0.00648901 | 0.00891084 |
| 162 | 0.106735 | 0.00620433 | 0.00871096 |
| 198 | 0.104823 | 0.00644319 | 0.00829303 |
| 234 | 0.0927822 | 0.0056092 | 0.00792081 |
| 270 | 0.0910598 | 0.00893661 | 0.0076501 |
| 306 | 0.101284 | 0.0107518 | 0.01023623 |
| 342 | 0.0883188 | 0.0112321 | 0.01548143 |
