Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

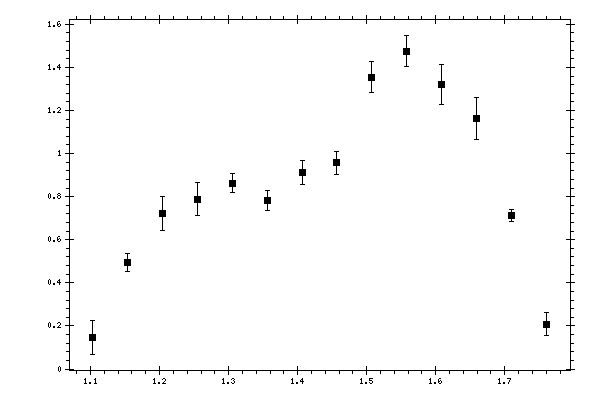

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10311 | 0.144447 | 0.0788668 | 0.0150376 |
| 1.15365 | 0.495658 | 0.0425752 | 0.04942094 |
| 1.2042 | 0.722311 | 0.0806749 | 0.06411369 |
| 1.25474 | 0.789226 | 0.0771791 | 0.06997205 |
| 1.30528 | 0.861912 | 0.0443658 | 0.06686698 |
| 1.35582 | 0.782695 | 0.0465568 | 0.06078703 |
| 1.40636 | 0.910636 | 0.0552521 | 0.08082934 |
| 1.45691 | 0.957422 | 0.0538852 | 0.08490002 |
| 1.50745 | 1.35505 | 0.0735864 | 0.11320587 |
| 1.55799 | 1.47576 | 0.0705129 | 0.12282767 |
| 1.60853 | 1.32162 | 0.0926081 | 0.11531923 |
| 1.65907 | 1.16373 | 0.0986905 | 0.10392925 |
| 1.70962 | 0.713931 | 0.0286541 | 0.07807855 |
| 1.76016 | 0.208242 | 0.0530556 | 0.04790464 |
