Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|

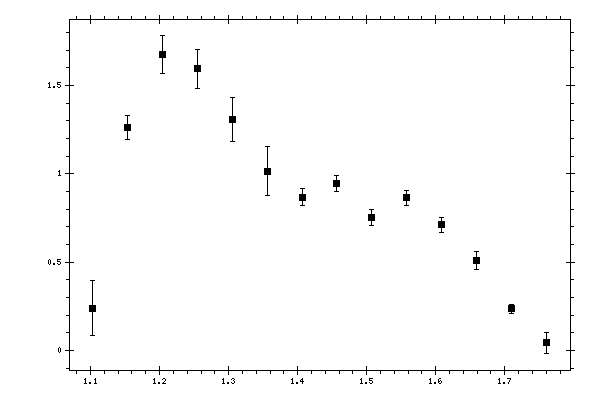

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10311 | 0.239549 | 0.155064 | 0.06831621 |
| 1.15365 | 1.26105 | 0.0675836 | 0.12587534 |
| 1.2042 | 1.67273 | 0.107539 | 0.16124283 |
| 1.25474 | 1.59484 | 0.110133 | 0.15461738 |
| 1.30528 | 1.30708 | 0.122829 | 0.13349207 |
| 1.35582 | 1.0146 | 0.139414 | 0.10391707 |
| 1.40636 | 0.867319 | 0.0469271 | 0.07451452 |
| 1.45691 | 0.943296 | 0.0449976 | 0.08101797 |
| 1.50745 | 0.753071 | 0.0431428 | 0.06686609 |
| 1.55799 | 0.863546 | 0.0402887 | 0.07665811 |
| 1.60853 | 0.712998 | 0.0423461 | 0.05971399 |
| 1.65907 | 0.510392 | 0.0500502 | 0.04279657 |
| 1.70962 | 0.237127 | 0.0258495 | 0.02566319 |
| 1.76016 | 0.0448206 | 0.0594572 | 0.00509819 |
