Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

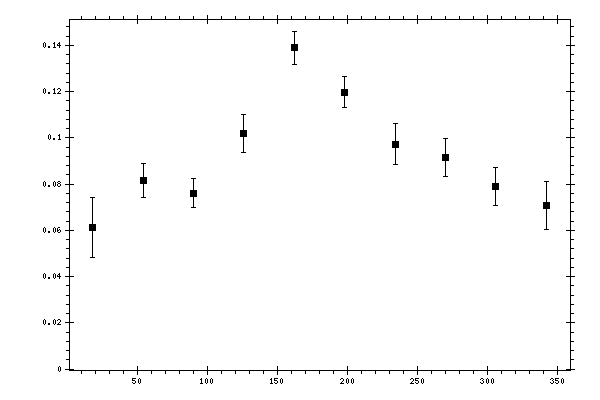

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.061192 | 0.0130196 | 0.00893709 |
| 54 | 0.0815208 | 0.00731456 | 0.00920213 |
| 90 | 0.0760685 | 0.00619348 | 0.00700285 |
| 126 | 0.101929 | 0.00840888 | 0.00978408 |
| 162 | 0.138944 | 0.00717279 | 0.01105246 |
| 198 | 0.119818 | 0.00684861 | 0.01014728 |
| 234 | 0.0972923 | 0.0088434 | 0.00925671 |
| 270 | 0.0915671 | 0.00821746 | 0.00951759 |
| 306 | 0.0788979 | 0.00817111 | 0.00922196 |
| 342 | 0.0706253 | 0.0103327 | 0.01023483 |
