Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

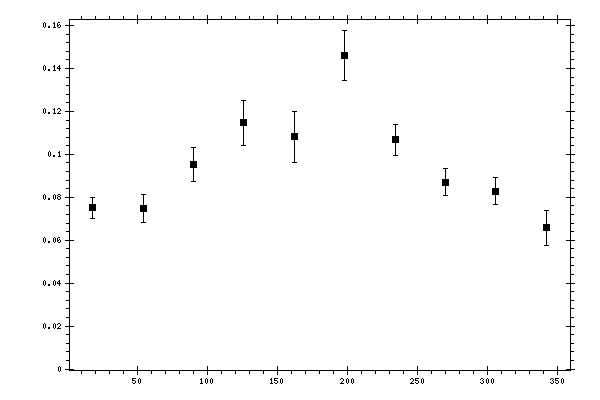

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0750181 | 0.00501202 | 0.00777001 |
| 54 | 0.0748228 | 0.00668909 | 0.00672952 |
| 90 | 0.0952092 | 0.00795741 | 0.00981569 |
| 126 | 0.114719 | 0.0104435 | 0.01103739 |
| 162 | 0.108272 | 0.0118783 | 0.00974446 |
| 198 | 0.14605 | 0.0115671 | 0.01176037 |
| 234 | 0.106754 | 0.00718299 | 0.00936347 |
| 270 | 0.0869963 | 0.00636984 | 0.00753355 |
| 306 | 0.0828324 | 0.00634434 | 0.00882844 |
| 342 | 0.0657542 | 0.00801834 | 0.00821014 |
