Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

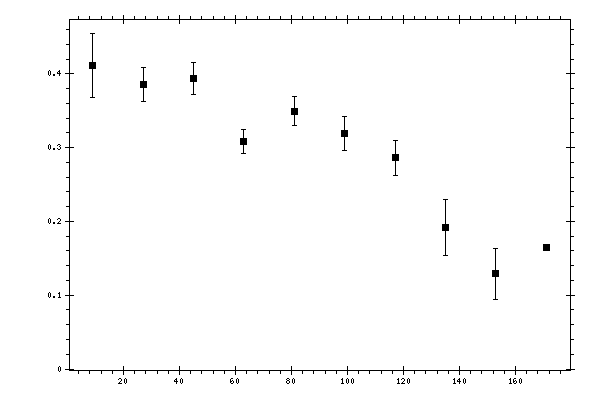

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.411386 | 0.0436764 | 0.03479216 |
| 27 | 0.385358 | 0.0227623 | 0.02960814 |
| 45 | 0.394103 | 0.02132 | 0.03199935 |
| 63 | 0.30816 | 0.0161411 | 0.02593454 |
| 81 | 0.349409 | 0.019469 | 0.02836289 |
| 99 | 0.319466 | 0.0233325 | 0.02535877 |
| 117 | 0.286185 | 0.023703 | 0.02577742 |
| 135 | 0.191608 | 0.0378424 | 0.02385186 |
| 153 | 0.129088 | 0.0347906 | 0.03522674 |
| 171 | 0.16419 | 0.00015939 | 0.08563333 |
