Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

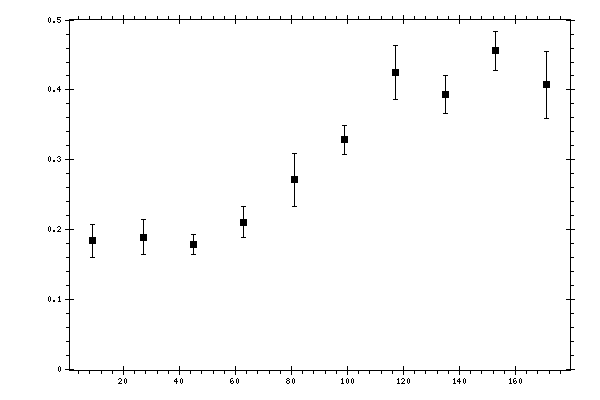

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.183501 | 0.0231222 | 0.0310941 |
| 27 | 0.188556 | 0.0250976 | 0.02812239 |
| 45 | 0.178995 | 0.0144138 | 0.02364574 |
| 63 | 0.210309 | 0.0222483 | 0.02145513 |
| 81 | 0.271202 | 0.0377556 | 0.03137122 |
| 99 | 0.328651 | 0.0207658 | 0.03026397 |
| 117 | 0.424783 | 0.0390928 | 0.03346167 |
| 135 | 0.393571 | 0.0267921 | 0.03348238 |
| 153 | 0.456207 | 0.0278588 | 0.03806054 |
| 171 | 0.407154 | 0.0482931 | 0.04117429 |
