Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

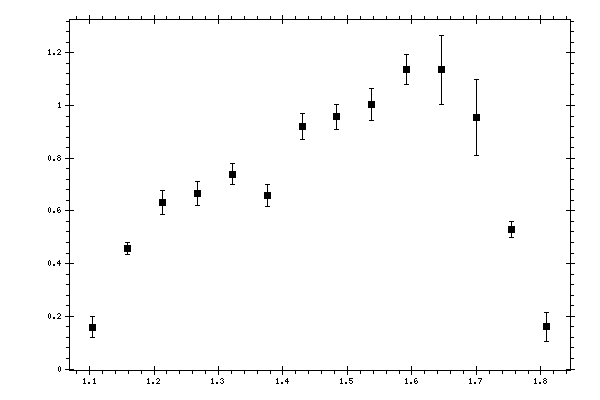

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.1049 | 0.158692 | 0.0395924 | 0.01514187 |
| 1.15901 | 0.457021 | 0.0233303 | 0.04181544 |
| 1.21313 | 0.630221 | 0.0457829 | 0.05260316 |
| 1.26724 | 0.665992 | 0.0445364 | 0.05554055 |
| 1.32135 | 0.738669 | 0.0397703 | 0.06764024 |
| 1.37547 | 0.658495 | 0.0421219 | 0.06035296 |
| 1.42958 | 0.920392 | 0.0484857 | 0.0867058 |
| 1.48369 | 0.957293 | 0.0475421 | 0.09014112 |
| 1.53781 | 1.0048 | 0.0615412 | 0.08948527 |
| 1.59192 | 1.13709 | 0.0578507 | 0.10091921 |
| 1.64603 | 1.1349 | 0.1314 | 0.10766698 |
| 1.70015 | 0.954352 | 0.143291 | 0.09287968 |
| 1.75426 | 0.528529 | 0.0308688 | 0.06749054 |
| 1.80837 | 0.160212 | 0.0560669 | 0.03775726 |
