Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

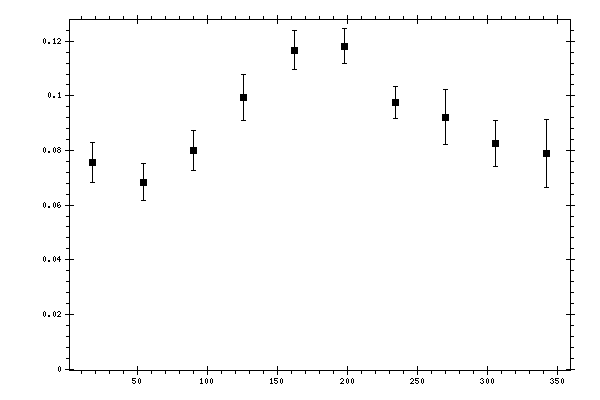

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0756106 | 0.00726818 | 0.00982575 |
| 54 | 0.0683961 | 0.00666921 | 0.00683011 |
| 90 | 0.0799487 | 0.00737539 | 0.00722204 |
| 126 | 0.0993118 | 0.0084383 | 0.0082586 |
| 162 | 0.116765 | 0.00705849 | 0.0099223 |
| 198 | 0.118219 | 0.00641475 | 0.0101915 |
| 234 | 0.0974722 | 0.00581279 | 0.0078656 |
| 270 | 0.092159 | 0.010138 | 0.0094763 |
| 306 | 0.0824468 | 0.00840426 | 0.00799181 |
| 342 | 0.0789341 | 0.0124681 | 0.01098324 |
