Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

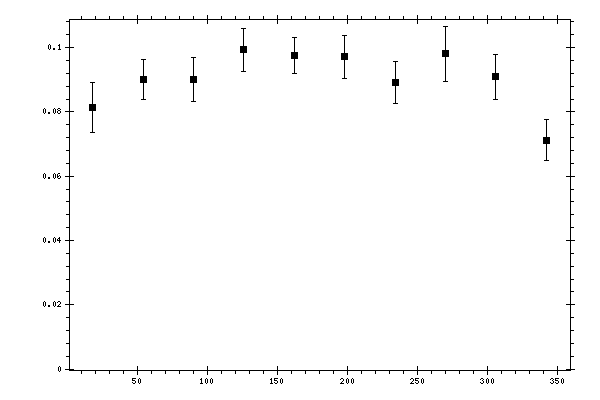

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0814108 | 0.0077038 | 0.00915337 |
| 54 | 0.0900298 | 0.00620105 | 0.0086353 |
| 90 | 0.0899887 | 0.00680517 | 0.0073474 |
| 126 | 0.0994161 | 0.00669076 | 0.00854633 |
| 162 | 0.0975319 | 0.00556833 | 0.00883984 |
| 198 | 0.0971156 | 0.00680445 | 0.00792721 |
| 234 | 0.0891941 | 0.00663515 | 0.00773959 |
| 270 | 0.0980608 | 0.00847122 | 0.00867088 |
| 306 | 0.0909505 | 0.00701866 | 0.00863531 |
| 342 | 0.0712387 | 0.0062894 | 0.00931098 |
