Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|

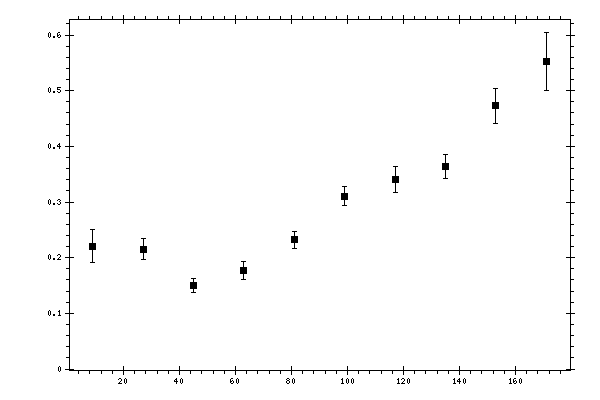

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.220995 | 0.0298153 | 0.03161594 |
| 27 | 0.215065 | 0.0186526 | 0.03299645 |
| 45 | 0.1502 | 0.0130901 | 0.01969544 |
| 63 | 0.17681 | 0.016536 | 0.02059335 |
| 81 | 0.232021 | 0.0158391 | 0.02109116 |
| 99 | 0.310633 | 0.0169346 | 0.02564671 |
| 117 | 0.340695 | 0.0234661 | 0.02890772 |
| 135 | 0.364194 | 0.0213345 | 0.03678776 |
| 153 | 0.473333 | 0.0314175 | 0.0372265 |
| 171 | 0.552456 | 0.0512654 | 0.05133053 |
