Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|

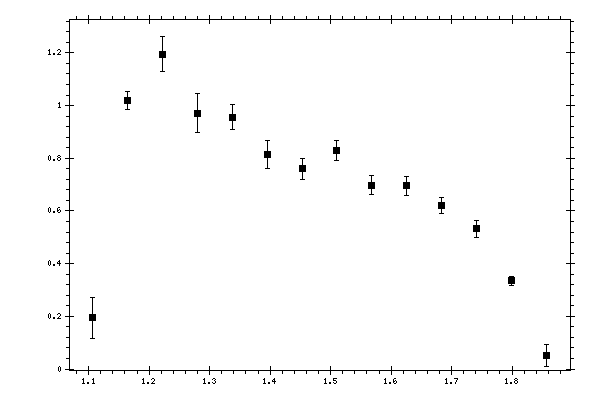

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10668 | 0.194207 | 0.0780858 | 0.07111552 |
| 1.16437 | 1.02072 | 0.0340605 | 0.10966844 |
| 1.22205 | 1.1955 | 0.0668606 | 0.09774406 |
| 1.27974 | 0.970764 | 0.0741974 | 0.08178774 |
| 1.33742 | 0.956236 | 0.0486249 | 0.07407084 |
| 1.39511 | 0.813818 | 0.0527082 | 0.06320415 |
| 1.45279 | 0.759715 | 0.0406912 | 0.06260569 |
| 1.51048 | 0.830001 | 0.0389302 | 0.06837413 |
| 1.56816 | 0.697426 | 0.0366832 | 0.06134301 |
| 1.62585 | 0.695559 | 0.0367324 | 0.06117902 |
| 1.68353 | 0.62098 | 0.0295738 | 0.0524906 |
| 1.74122 | 0.5318 | 0.0319574 | 0.04495667 |
| 1.7989 | 0.33411 | 0.016433 | 0.03144451 |
| 1.85659 | 0.0515322 | 0.041843 | 0.00499956 |
