Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

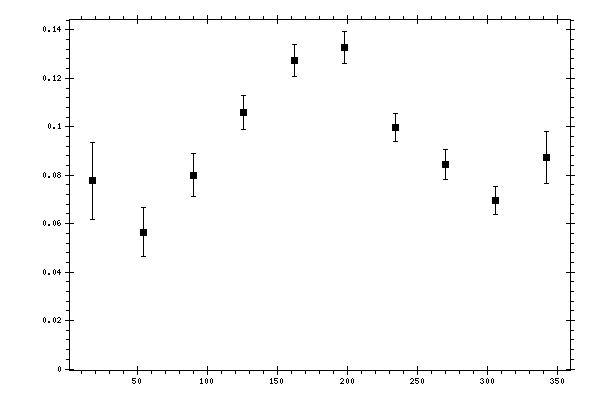

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0776724 | 0.0159904 | 0.01568912 |
| 54 | 0.056546 | 0.0100835 | 0.0066098 |
| 90 | 0.0800665 | 0.00889362 | 0.00829308 |
| 126 | 0.106073 | 0.00703238 | 0.00873509 |
| 162 | 0.127204 | 0.00660577 | 0.009821 |
| 198 | 0.132779 | 0.00666951 | 0.00973187 |
| 234 | 0.0997286 | 0.00586169 | 0.00773584 |
| 270 | 0.0844818 | 0.00603607 | 0.0074028 |
| 306 | 0.0696276 | 0.00587604 | 0.00858048 |
| 342 | 0.0873842 | 0.0106294 | 0.01095851 |
