Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|

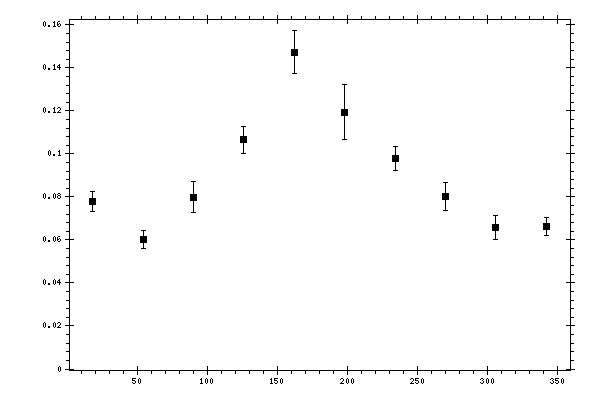

Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0778669 | 0.00473066 | 0.00834031 |
| 54 | 0.0601142 | 0.00423465 | 0.00624018 |
| 90 | 0.0799812 | 0.00741048 | 0.00827623 |
| 126 | 0.106513 | 0.00639266 | 0.00861579 |
| 162 | 0.147295 | 0.00993145 | 0.01156584 |
| 198 | 0.119339 | 0.0127455 | 0.01053545 |
| 234 | 0.0980429 | 0.00557269 | 0.00757649 |
| 270 | 0.0802165 | 0.00654956 | 0.00633424 |
| 306 | 0.0658101 | 0.0054487 | 0.00683413 |
| 342 | 0.0660393 | 0.00419038 | 0.00711935 |
