Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

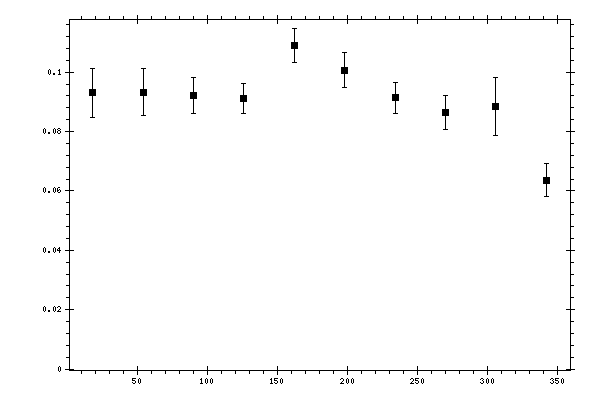

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.09306 | 0.00826769 | 0.01026574 |
| 54 | 0.093241 | 0.00795671 | 0.00832103 |
| 90 | 0.0921521 | 0.00621636 | 0.00714752 |
| 126 | 0.0911726 | 0.00506096 | 0.00903256 |
| 162 | 0.109013 | 0.00575355 | 0.00930489 |
| 198 | 0.100646 | 0.00588913 | 0.00787428 |
| 234 | 0.0913617 | 0.00521032 | 0.00713147 |
| 270 | 0.0864264 | 0.00587066 | 0.00694091 |
| 306 | 0.088501 | 0.00979076 | 0.00771582 |
| 342 | 0.0635894 | 0.00549879 | 0.00788976 |
