Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

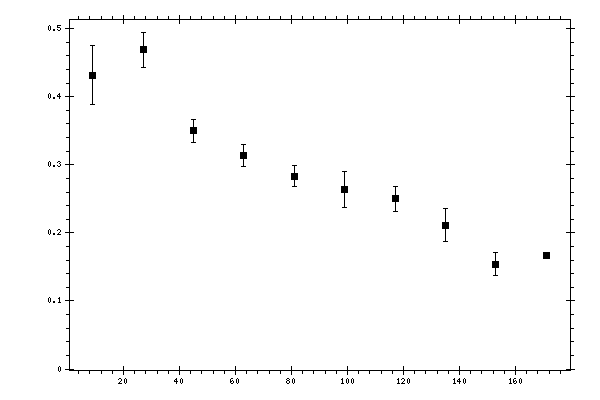

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.431662 | 0.0433735 | 0.03638864 |
| 27 | 0.469021 | 0.025788 | 0.03569676 |
| 45 | 0.349942 | 0.016928 | 0.02693703 |
| 63 | 0.31342 | 0.0157517 | 0.02518008 |
| 81 | 0.283198 | 0.015718 | 0.02288532 |
| 99 | 0.263731 | 0.0270123 | 0.02458661 |
| 117 | 0.249855 | 0.0185651 | 0.02063741 |
| 135 | 0.211054 | 0.0242908 | 0.03014079 |
| 153 | 0.153872 | 0.0170878 | 0.03252193 |
| 171 | 0.166148 | 0.00017909 | 0.08740346 |
