Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

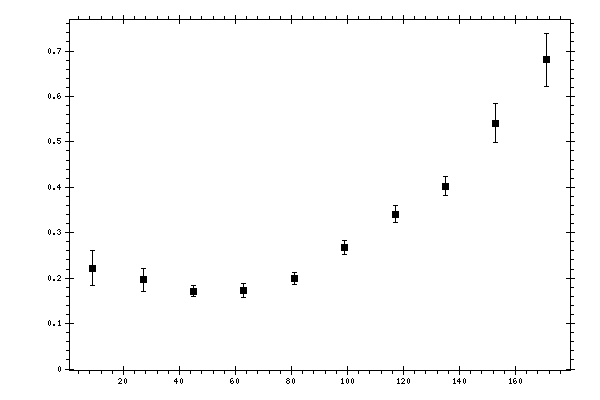

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.221905 | 0.0379308 | 0.03351319 |
| 27 | 0.196507 | 0.0250239 | 0.02615079 |
| 45 | 0.170946 | 0.0122459 | 0.02125068 |
| 63 | 0.172857 | 0.0148747 | 0.01761246 |
| 81 | 0.198666 | 0.0127816 | 0.01665314 |
| 99 | 0.268139 | 0.0157877 | 0.02295524 |
| 117 | 0.34065 | 0.0183649 | 0.02635997 |
| 135 | 0.402328 | 0.0211329 | 0.0317436 |
| 153 | 0.541484 | 0.0429802 | 0.04537095 |
| 171 | 0.680889 | 0.0583177 | 0.06145975 |
