Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|

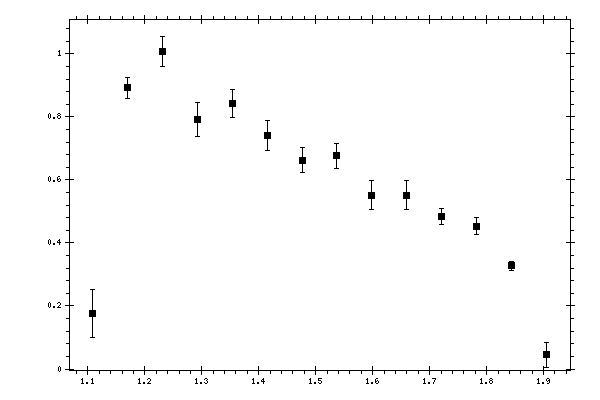

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10847 | 0.176301 | 0.0766592 | 0.0685048 |
| 1.16973 | 0.892873 | 0.0340641 | 0.12313013 |
| 1.23098 | 1.00753 | 0.047897 | 0.13656748 |
| 1.29224 | 0.792043 | 0.0540212 | 0.10852664 |
| 1.3535 | 0.843198 | 0.0451244 | 0.07853651 |
| 1.41475 | 0.742219 | 0.0480962 | 0.06918094 |
| 1.47601 | 0.663277 | 0.041022 | 0.05488181 |
| 1.53726 | 0.676694 | 0.0406133 | 0.05598585 |
| 1.59852 | 0.551843 | 0.0453274 | 0.04956544 |
| 1.65978 | 0.551522 | 0.0453405 | 0.04953677 |
| 1.72103 | 0.483817 | 0.0255899 | 0.0385271 |
| 1.78229 | 0.453818 | 0.0264222 | 0.03613893 |
| 1.84355 | 0.327442 | 0.0144875 | 0.02893399 |
| 1.9048 | 0.0452257 | 0.0389823 | 0.00411328 |
