Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

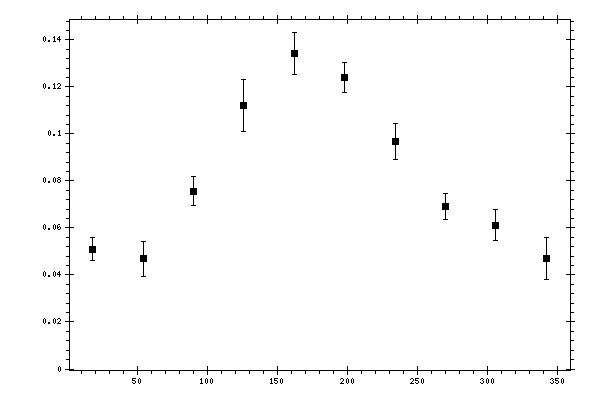

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0510206 | 0.00477896 | 0.00797714 |
| 54 | 0.0469198 | 0.00747243 | 0.00909146 |
| 90 | 0.0756061 | 0.00615011 | 0.00759292 |
| 126 | 0.112108 | 0.0110033 | 0.01174041 |
| 162 | 0.134224 | 0.00896758 | 0.01098263 |
| 198 | 0.124028 | 0.00651824 | 0.00923314 |
| 234 | 0.0968931 | 0.00757171 | 0.00832338 |
| 270 | 0.0692785 | 0.00550678 | 0.00706838 |
| 306 | 0.0611782 | 0.00648115 | 0.00802887 |
| 342 | 0.0468544 | 0.0089248 | 0.00791733 |
